ZPS series · Safety scalping at high flow

ZPS Straight-Through Vibrating Screen

High-flow inline scalping — up to 5× the throughput of rotary sieves

Core range
2× Vibration Motors
Core range
Direct Discharge
Core range
Safety Scalping
Core range
Low Headroom
Discuss your applicationModel specifications

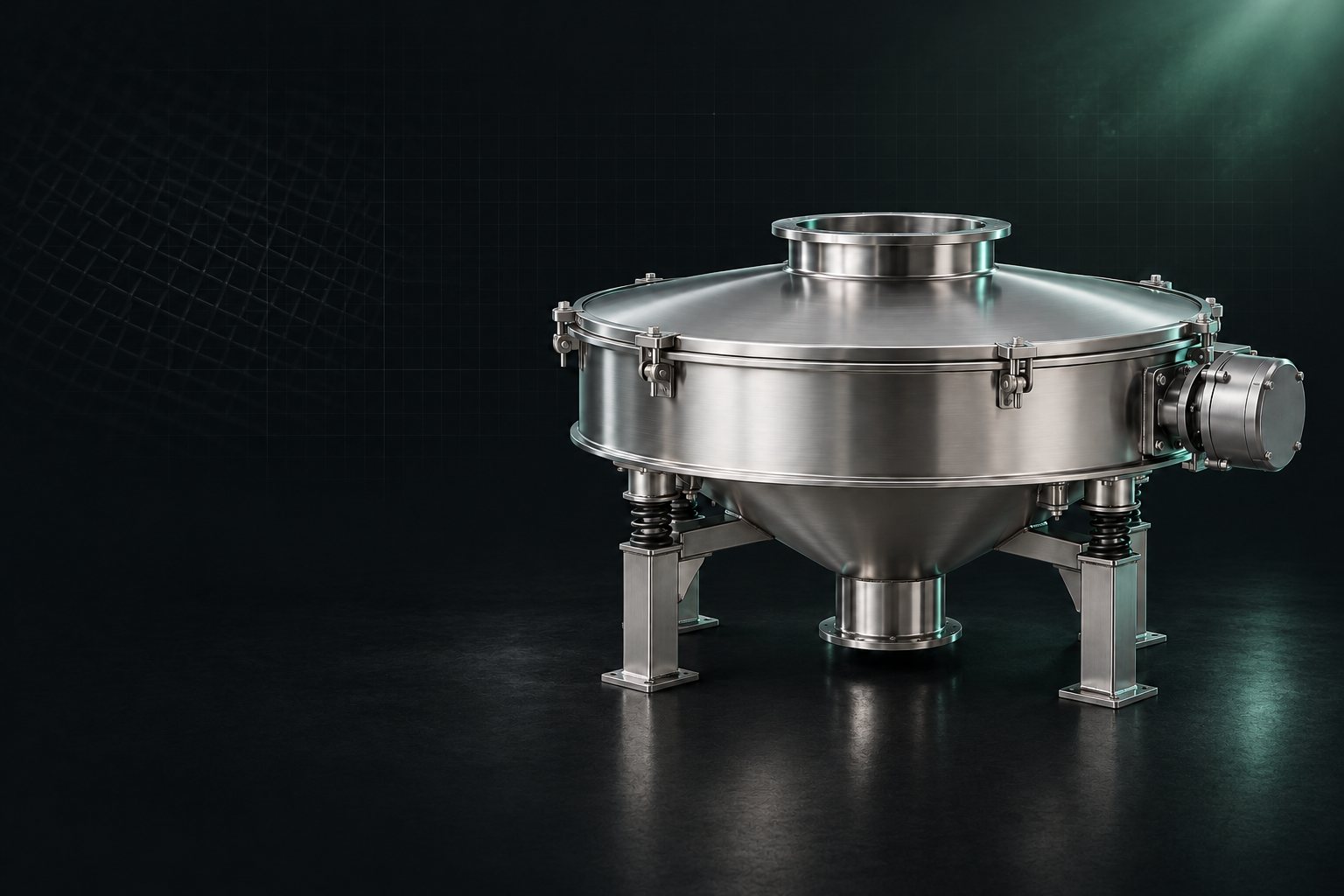

ZPS series · concept render
Key advantages

Why lines standardise on the ZPS

5× throughput

Straight-line trajectory and full-bore outlet pass up to 5× the flow of an equal-diameter rotary sieve — no spiral residence time.

Inline installation

Round inlet/outlet matches pipework and vacuum conveyors; drop it between flanges and keep producing.

Single-screen simplicity

One tensioned mesh, one target: remove tramp oversize and bag-nips before they reach your filler.

Compact headroom

Height is 30–40% less than multi-deck rotary machines — fits existing mezzanines and hopper lids.

Fast screen swaps

Clamp-band design swaps mesh in minutes during shift changes; no tools required.

Gentle on product

Low-amplitude linear motion conveys without hammering friable granules — keeps particle integrity.

Structure

Inside the ZPS — interactive model

Rotate the model, explode it along the assembly axis, and open any part group for its role. Reduced-motion settings get the same interactive model with auto-animation off; touch devices start from the static view and load it on request.

ZPS straight-through screen — low single-deck circular machine with inline dischargeStatic view

Part groups

4 labels at a time

    The interactive model is a marketing-grade structural illustration: proportions, layer count and outlet direction match the machine; it is not a manufacturing drawing.

    Specifications

    ZPS model range

    ParameterZPS-400ZPS-600ZPS-800ZPS-1000ZPS-1200
    Screen diameter400mm600mm800mm1000mm1200mm
    Mesh range2–200mesh
    Capacity (flour-class)≤600kg/h≤1500kg/h≤3000kg/h≤5000kg/h≤7500kg/h
    Motor power (×2)0.18 ×2kW0.25 ×2kW0.37 ×2kW0.55 ×2kW0.75 ×2kW
    Vibration modeLinear, horizontal
    Overall size (Ø×H)460×450mm660×480mm880×540mm1100×600mm1300×680mm
    Inlet / outletØ150/200mmØ200/250mmØ250/300mmØ300/350mmØ350/400mm
    Weight38kg70kg110kg170kg250kg

    Typical values — reference condition, free-flowing material; derate for sticky, dense or fine products.

    Options — contact-part materials, ATEX-option builds, ultrasonic and inlet configurations are quoted per application.

    Test condition — capacities are nameplate chart values; the number for your material comes from a sample test.

    Scroll the table horizontally on small screens

    Typical materials

    What it screens

    Pre-packing scalpingVacuum conveyor outletMixer chargingMilk powder linesGranules & pelletsReceiving hoppers
    Where it runs

    Industries on this machine

    Food & BeveragePharmaceuticalsMetal Powders & Abrasives
    Discuss your application

    Size a ZPS to your material

    Material, target cut and capacity are enough for a first sizing — with the limits and alternatives stated plainly.

    • Series and deck recommendation with constraints
    • Optional sample test with sieve analysis before you order
