450 series · Liquid clarification

450-Type Liquid Vibrating Filter

One-pass clarification of coatings, slurries and recycled liquids

Core range
Up to 12 m³/h
Core range
10–120 Mesh Liquid
Core range
No Consumable Bags
Core range
CIP-Friendly
Discuss your applicationModel specifications

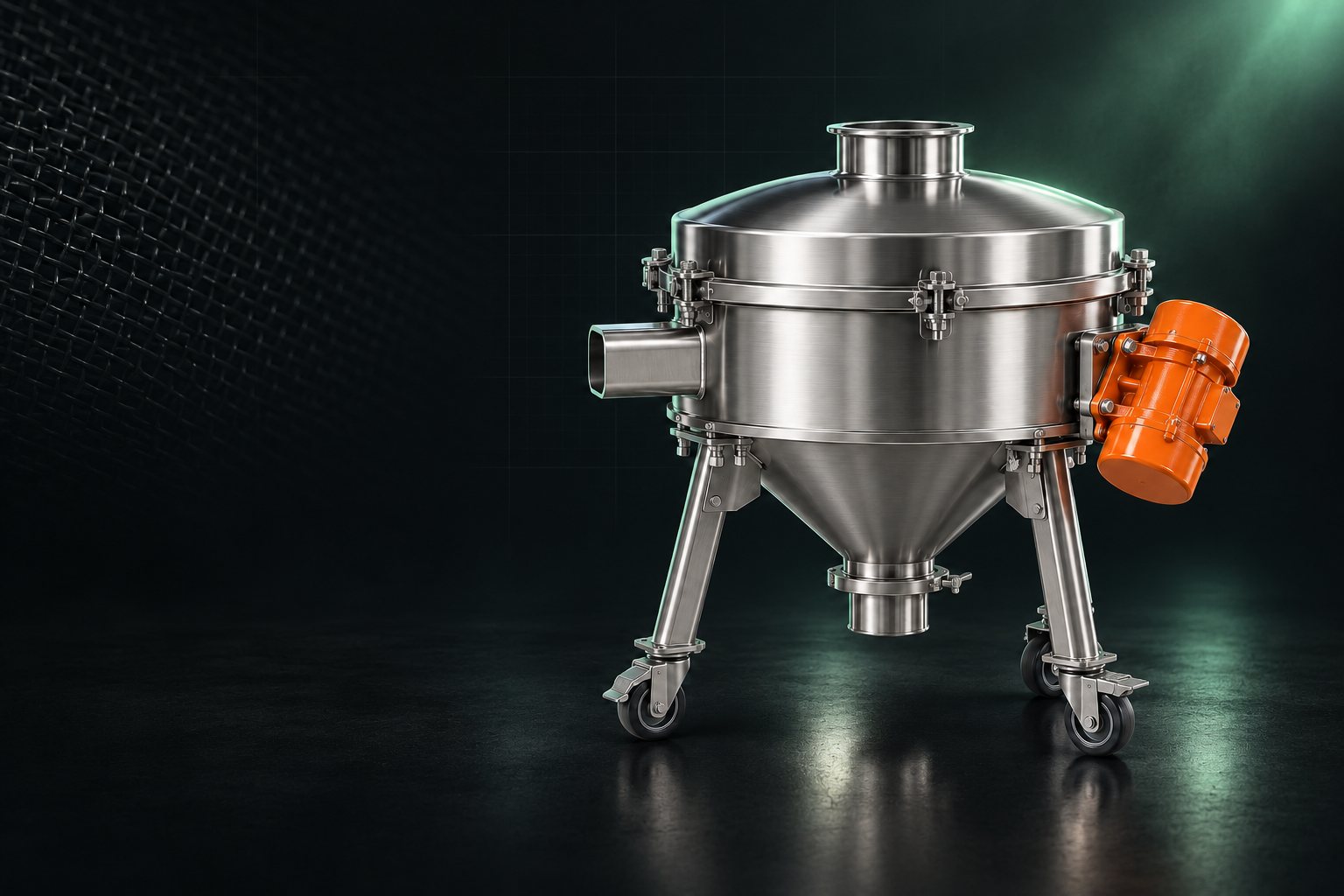

450 series · concept render
Key advantages

Why lines standardise on the 450

Zero consumables

Stainless mesh replaces disposable filter bags — pays for itself in bag spend within months.

Continuous discharge

Solids walk the mesh to the side outlet; the line keeps flowing for shifts without cleaning.

Wet-part friendly

Sealed motor hood and 316L option handle water-based and solvent-borne liquids alike.

Fast clamp-down

Single clamp ring releases the mesh pack for CIP rinsing in under five minutes.

Vane anti-blinding

Bouncing silicone balls under the mesh keep gummy solids from plugging the screen.

Small footprint

Ø450 frame drops into existing bag-filter housings and totes — swap and run.

Structure

Inside the 450 — interactive model

Rotate the model, explode it along the assembly axis, and open any part group for its role. Reduced-motion settings get the same interactive model with auto-animation off; touch devices start from the static view and load it on request.

450 liquid filter — compact vertical pressure vessel on castored legsStatic view

Part groups

4 labels at a time

    The interactive model is a marketing-grade structural illustration: proportions, layer count and outlet direction match the machine; it is not a manufacturing drawing.

    Specifications

    450 model range

    Parameter450-1450-2
    Screen diameter450mm450mm
    Mesh range10–120mesh
    Flow rate≤8m³/h≤12m³/h
    Motor power0.37kW0.55kW
    Contact materialSUS304SUS316L
    Inlet / outletØ76 inlet / Ø89 outletmm
    Overall height640mm640mm
    Weight42kg46kg

    Typical values — reference condition, free-flowing material; derate for sticky, dense or fine products.

    Options — contact-part materials, ATEX-option builds, ultrasonic and inlet configurations are quoted per application.

    Test condition — capacities are nameplate chart values; the number for your material comes from a sample test.

    Scroll the table horizontally on small screens

    Typical materials

    What it screens

    Paint & coatingsCeramic glaze slurryWastewater polishCoolant recyclingFood saucesCosmetic creams
    Where it runs

    Industries on this machine

    Food & BeverageChemicals & Coatings
    Discuss your application

    Size a 450 to your material

    Material, target cut and capacity are enough for a first sizing — with the limits and alternatives stated plainly.

    • Series and deck recommendation with constraints
    • Optional sample test with sieve analysis before you order

    Direct to engineering · No spam
