SZF series · Bulk grading & dewatering

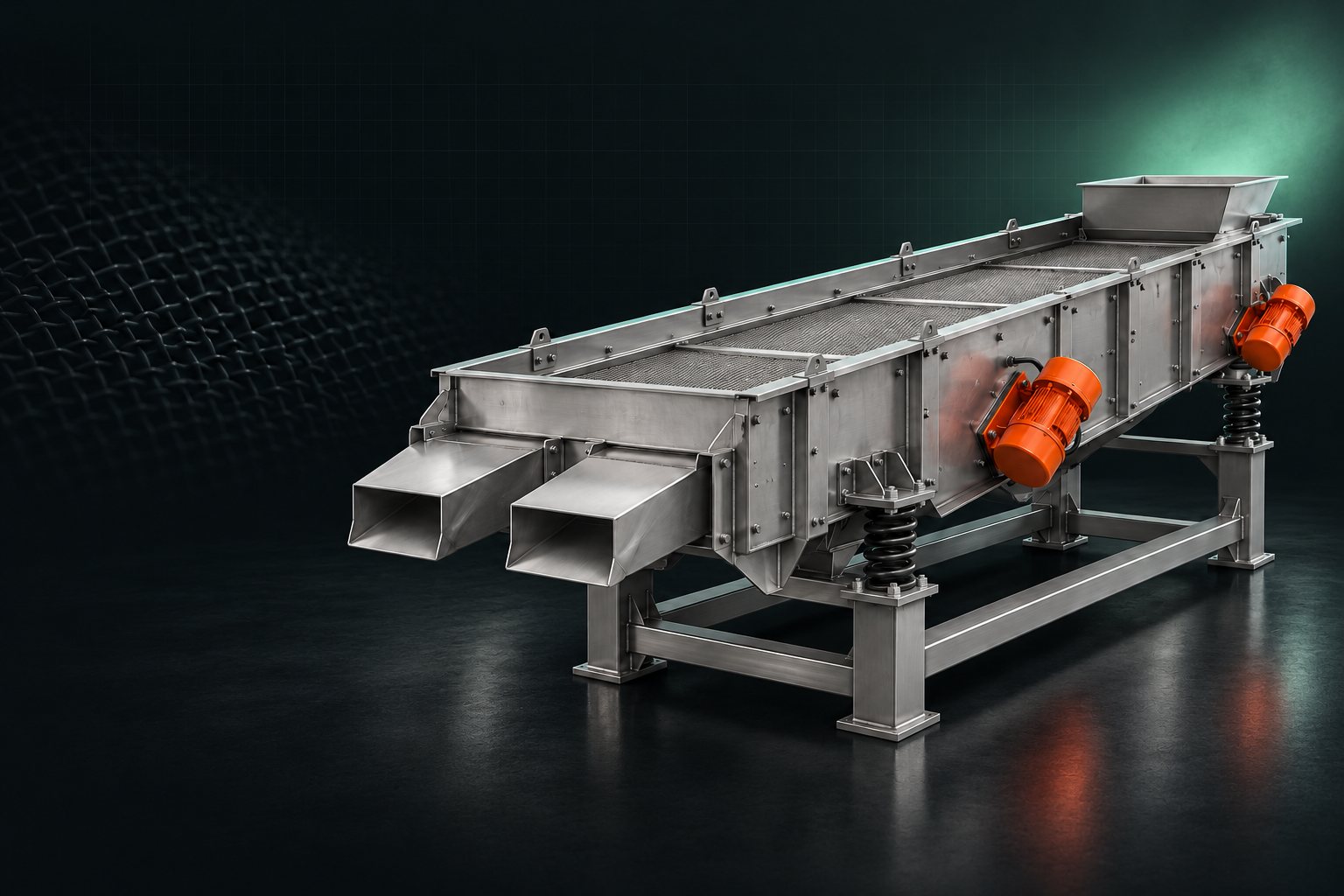

SZF Linear Vibrating Screen
Large-capacity grading, dewatering and de-sliming on a compact footprint
- Core range
- Up to 6 Layers
- Core range
- 20 t/h Class
- Core range
- Forward Jump Conveying
- Core range
- Adjustable Throw Angle
Why lines standardise on the SZF
Tons per hour
Rectangular deck area of 1–9 m² processes 0.1–20 t/h depending on material bulk density.
Multi-fraction grading
2–6 mesh layers grade up to 7 size fractions in one continuous pass.
Dewatering & washing
Perforated plate or wedge-wire options de-water and de-slime sand, coal and recycled glass.
Adjustable throw
Motor eccentric weights tune amplitude; mounting angle tunes transport speed — dial in your material.
Rigid sieve box
Bolted-bend steel body with torsion-welded side plates survives 24/7 quarry duty.
Hot-swappable panels
Tension rails release mesh panels from the top — no stripping the whole deck to fix one rip.
Inside the SZF — interactive model
Rotate the model, explode it along the assembly axis, and open any part group for its role. Reduced-motion settings get the same interactive model with auto-animation off; touch devices start from the static view and load it on request.
Part groups
4 labels at a timeThe interactive model is a marketing-grade structural illustration: proportions, layer count and outlet direction match the machine; it is not a manufacturing drawing.
SZF model range
| Parameter | SZF-520 | SZF-825 | SZF-1025 | SZF-1030 | SZF-1230 | SZF-1530 |
|---|---|---|---|---|---|---|
| Deck size (L×W) | 500×2000mm | 800×2500mm | 1000×2500mm | 1000×3000mm | 1200×3000mm | 1500×3000mm |
| Screen area per layer | 0.9m² | 1.8m² | 2.3m² | 2.8m² | 3.4m² | 4.3m² |
| Mesh range | 0.074–20mm | |||||
| Layers | 1–4 | 1–5 | 1–6 | 1–6 | 1–6 | 1–6 |
| Capacity (sand-class) | ≤3t/h | ≤8t/h | ≤12t/h | ≤15t/h | ≤18t/h | ≤20t/h |
| Motor power (×2) | 0.37 ×2kW | 0.75 ×2kW | 1.1 ×2kW | 1.5 ×2kW | 1.5 ×2kW | 2.2 ×2kW |
| Amplitude | 4–8mm | |||||
| Deck angle | 0–7 adjustable° | |||||
| Weight | 320kg | 560kg | 760kg | 950kg | 1200kg | 1600kg |
Typical values — reference condition, free-flowing material; derate for sticky, dense or fine products.
Options — contact-part materials, ATEX-option builds, ultrasonic and inlet configurations are quoted per application.
Test condition — capacities are nameplate chart values; the number for your material comes from a sample test.
Scroll the table horizontally on small screens
What it screens
Industries on this machine
Size a SZF to your material
Material, target cut and capacity are enough for a first sizing — with the limits and alternatives stated plainly.
- Series and deck recommendation with constraints
- Optional sample test with sieve analysis before you order
